DVB IP-Gateways
IGS-8008
Multiprotocol IPTV Streamer with 8 Tuner Inputs
Turn up to eight satellite, cable or terrestrial transponders into flexible IP streams — the IGS-8008 delivers SPTS/MPTS over UDP, RTP, RTSP, RTMP, HLS, HTTP or SRT for reliable IPTV distribution.
Overview
The VIZOBOX IGS-8008 is a DVB-to-IP gateway with eight tuner inputs that receives FTA DVB-S/S2/S2X signals — optionally DVB-C, DVB-T/T2 or ISDB-Tb via multi-tuner order options — and streams them as up to 64 SPTS over selectable UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT protocols. It supports DVB-S2 multistream demultiplexing, embedded BISS descrambling and dynamic PMT/EIT handling, with 100–400 Mbps processing on the GbE output port. Management is handled through a web GUI with HTTPS access, remote reboot and browser-based updates.
Highlights
- 8 tuner inputs for FTA DVB-S/S2/S2X, optionally DVB-C/DVB-T/DVB-T2/ISDB-Tb
- Multi-protocol IP output over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT via RJ45
- Up to 64 SPTS output streams with 100–400 Mbps processing on the GbE port
- DVB-S2 multistream demultiplexing and streaming for T2 deployments
- Embedded BISS descrambling with dynamic PMT and EIT demultiplexing
- Web GUI management with HTTPS, remote reboot and browser-based updates
Technical Specifications
| Input | |
|---|---|
| Tuner inputs (standard) | 8x tuner, F type, 75 Ohm, DVB-S2X multistream support |
| Tuner standard | DVB-S/S2/S2X (FTA) |
| Input frequency (satellite) | 950–2150 MHz |
| Symbol rate | QPSK/8PSK/16APSK 0.5–45 MSps; 8APSK/32APSK 0.5–40 MSps |
| DVB-S constellation / FEC | QPSK; FEC 1/2, 2/3, 3/4, 5/6, 7/8 |
| DVB-S2 constellations | QPSK/8PSK/16APSK/32APSK |
| DVB-S2X constellations | QPSK/8PSK/8APSK/16APSK/32APSK |
| Satellite functions | DiSEqC, PLS, multistreaming |
| Order option 2 | 8x DVB tuner DVB-C (J.83 A/C)/J.83B/DVB-T/DVB-T2/ISDB-T to IP, F type, 75 Ohm |
| Input frequency (option, cable/terrestrial) | 60–890 MHz |
| DVB-C symbol rate | 1000–9000 Ksps |
| DVB-C constellation | 16/32/64/128/256 QAM; 64/256 QAM for J.83B |
| DVB-T/T2 bandwidth | 5/6/7/8 MHz |
| Output | |
| Streaming output | SPTS over UDP/RTP/RTSP/RTMP/HLS/HTTP/SRT |
| Output streams | Max. 64 SPTS output streams |
| Data processing | 100–400 Mbps on GbE output port |
| Processing | |
| PID remapping | Maximum 256; automatic or manual |
| PSI/SI tables | Generated automatically; dynamic PMT, EIT demux support |
| Descrambling | BISS embedded, Mode 1, Mode E |
| Management | |
| Web management | Web GUI with HTTPS, remote reboot, browser-based updates |
| General | |
| Order guide | V1: no loop out for RF in; V2: with loop out for RF in |
| Dimensions (W x L x H) | 367 mm x 482 mm x 44 mm |
| Environmental | 0–45 °C (operation); -20–80 °C (storage) |
| Power supply | AC 110 V ±10%, 50/60 Hz; AC 220 V ±10%, 50/60 Hz |
More products in this category
IGA-4400
Professional ASI/IP gateway with re-multiplexing and MPTS-over-IP output
IGS-700
DVB/IP gateway for satellite, cable and terrestrial IPTV distribution

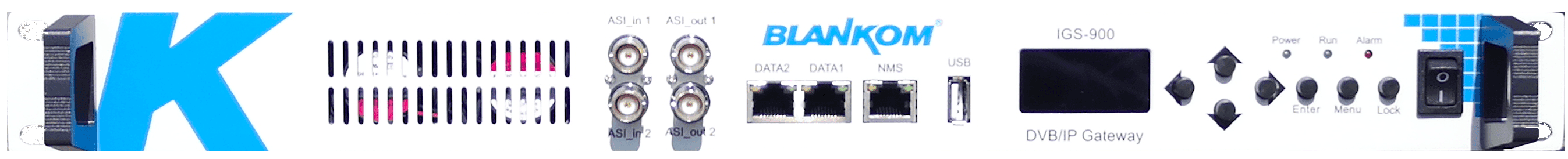

IGS-900
